Wednesday, September 3, 2008

Day 3

Today was a little strange. No particular reason, it just feels a little surreal. Working on a car this amazing has something to do with it. Combine that with the high power electric drive train and I think you will understand the feeling.
I have placed an order with Brent Smith Trailers to build a Saker specific transporter trailer by the 12th September. Brent has confirmed this will be achieved and he was happy to accomodate the modifications required to make the trailer just right for the job (this saves alot of hassel with renting or organising transporters plus it solves the problem of eventually having to buy a trailer anyway).

Today Bruce sourced the STi axels and prepared the chassis changes for Paul to weld later in the day. The chassis and mount point changes are now complete from a design point of view and largely complete from a fabrication point of view. We need to remove the motor and transaxle tomorrow so Paul can finish the job.

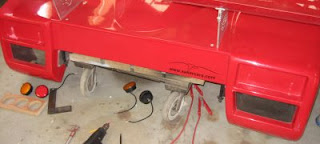

The eVision is now installed in the dash and we also have some tail lights (will get a third LED light to fill out the space later). We don't need blinkers or reversing lights for a race car (although as you can see we have installed blinkers). We only need brake and rain lights to pass scrutineering. This gives us a few interesting styling options which I might experiment with if we have time.

Until fabrication is complete and the mount points for the controller, contactor box and batteries are complete the focus needs to remain on auxiliary systems and other similar jobs that don't require access to the cockpit.

Tomorrow mount point fabrication will continue as well as auxilary system wiring, dash switches and buttons etc. We might also start looking at the POT box for the accelerator.

More action to come...
